We are a system integrator that focus on what's best for your solution under resonable cost!

We also are an authorized dealer of Impulse winding tester, ECG kokusai Japan. We have long experiences on ECG impulse winding tester. We can support you with strongly technical backgroud

Coils or Motors tester

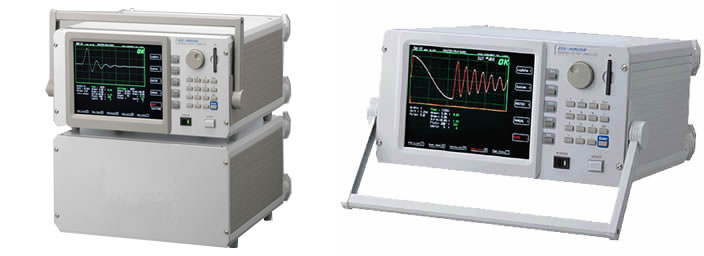

Impulse Winding Tester DWX Series

1. Coil testing

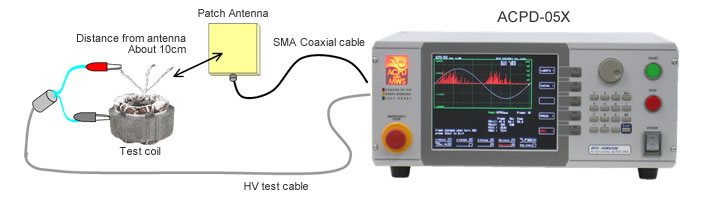

Impulse Winding Tester ECG Kokusai Coil testing diagram

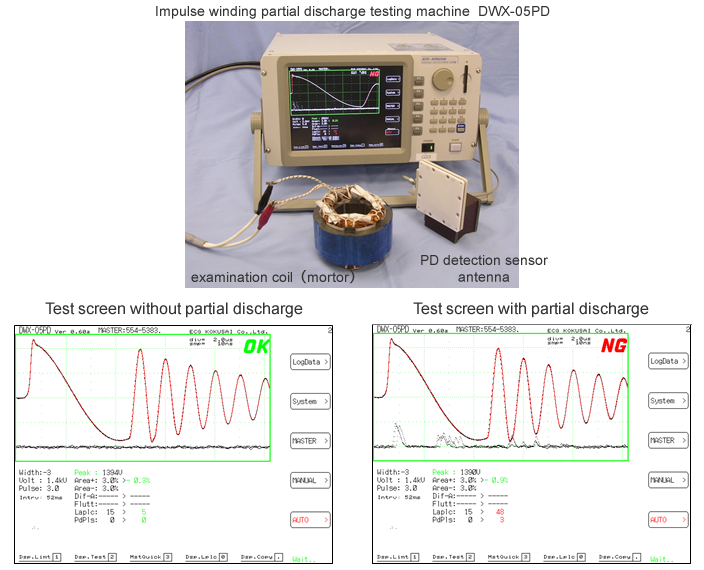

Coil testing : partial discharge to see the quality of isolator

Coil testing diagram

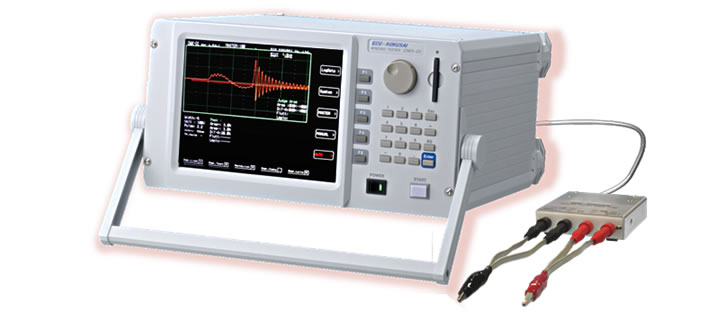

2. Ultra-low-inductance coil, high-speed test specification!

Super fast tester, 1μH coil is tested in 10msec !

ดีเยี่ยม สำหรับทดสอบชิ้นงานเล็ก ชิ้นงาน chip สำหรับ surface mount..ทดสอบงานดี ไม่มีพลาด ความแม่นยำสูง

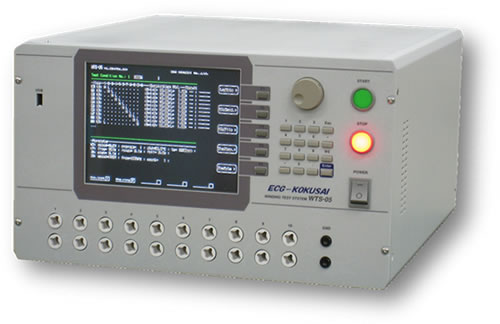

3. Integrated tester, General Winding Testing Machine WTS-05

เทสครบ จบแน่ในเครื่องเดียว รวมหมดทั้ง

...1) Impulse test

...2) DC resistance test

...3) AC voltage test

...4) Insulation resistance test

Four in one !!!! รวมครบในเครื่องเดียว เสถียรภาพสูงสุด

AC DC Powersupplies

Hi Power Programable Power supply

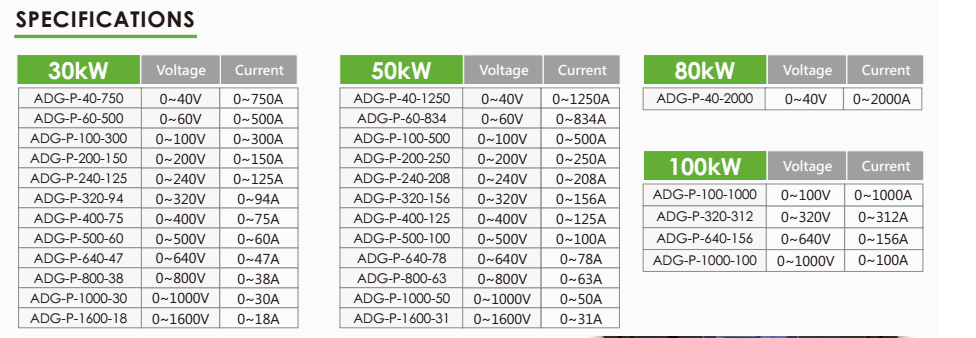

 Hi-power programable DC power supply

Specifications

Specifications

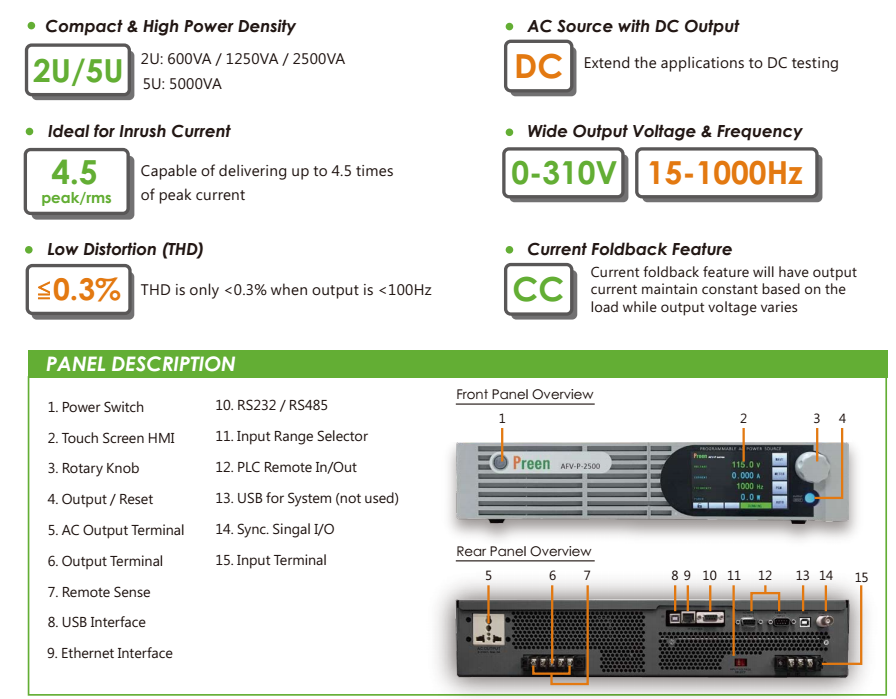

Hi-performance AC DC power supply

Specifications

In house developments

1.Matric relays scanner 8x8 channels. The relays are Ormron G6K-2F-Y-DC3 , 100mOhm, 1 A@30VDc

บอร์ดรีลย์ สแกน 8x8 ช่อง

Controlled by I2C standard, Power supply 3.3 Volts

 Matric relays scannner

2. ES901-400 ECG DWX scanner 4 + 1 channels

High voltage scanner with 4 isolated Channels and additional return channel for ECG DWX series.

The unit is designed specially for ECG DWX Impuslse Winding Tester compatible.

The colorful GUI touch screen provides easily access and control the unit, press once! test 4 coils.

This scanner is very useful for testing motor which has up to 4 coils.

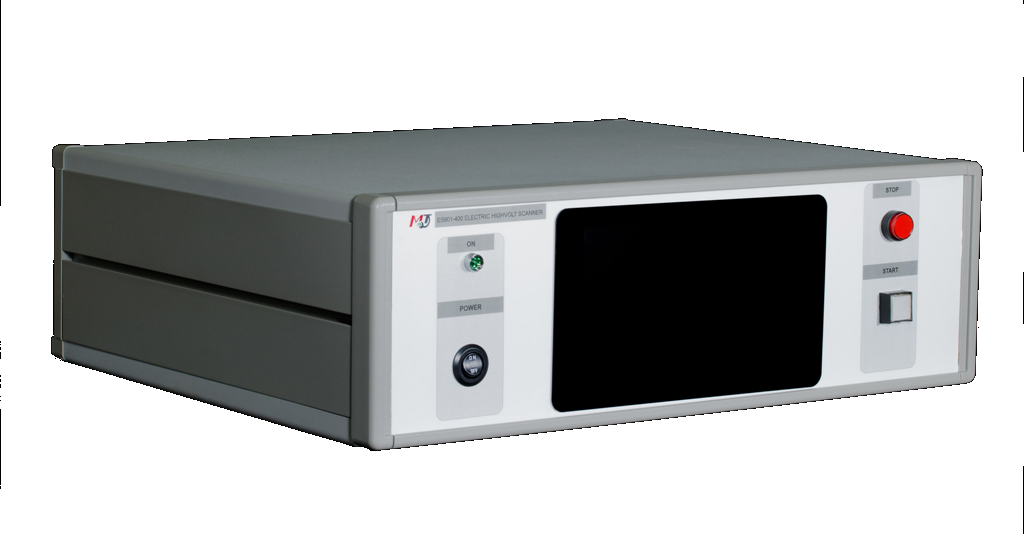

 ES901-400 front panel

ES901-400 ECG DWX compatible

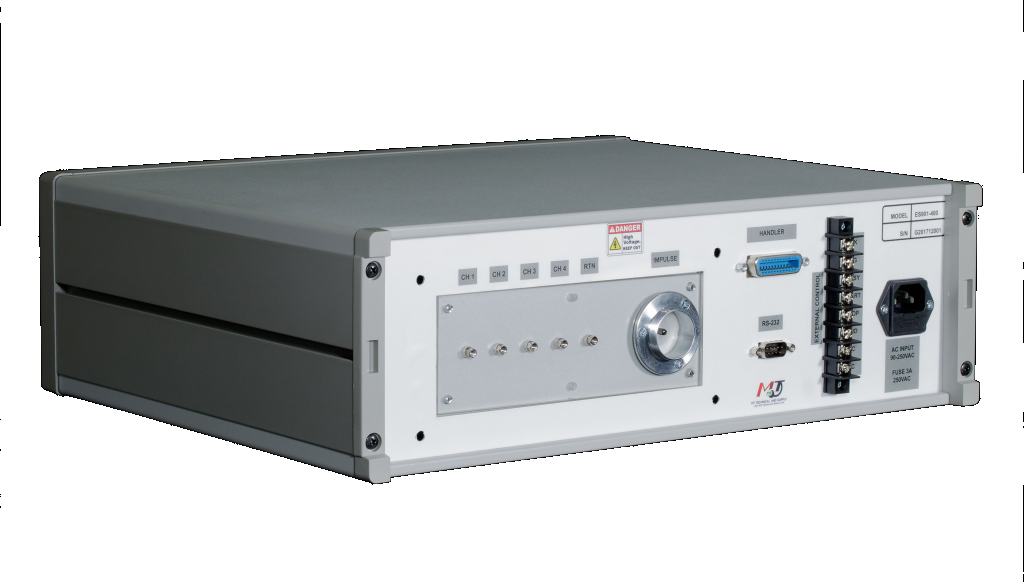

 ES901-400 back panel

ES901-400 has ES-handler port for PLC control and tower lamp for production line.

For more information: info@mttechnic.co.th

×
